Integration between RaQuest and Enterprise Architect (Traceability between requirement and UML Items)
Integration between RaQuest and Enterprise Architect (Traceability between requirement and UML Items)

Traceability management from requirement to UML Items

By setting UML Items related to a requirement managed by RaQuest, RaQuest can offer the traceability from the requirement to the UML Items.

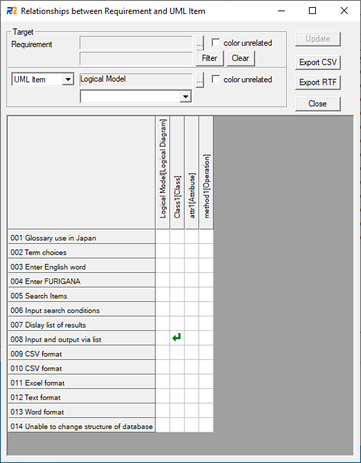

Matrix diagram of requirements and UML Items

By setting UML Items related to a requirement, matrix view is available. Editing is also available on the matrix.

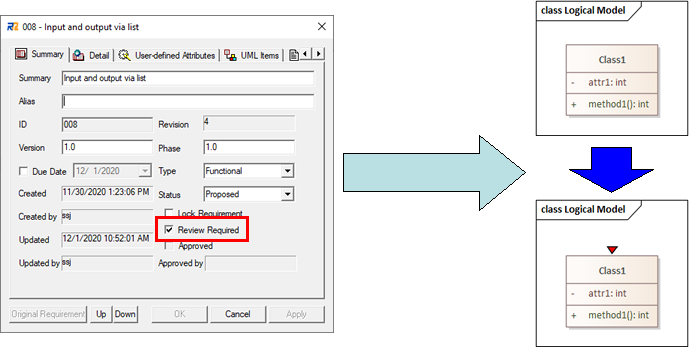

Reflecting requirement status to UML Items(Use the external command)

When UML Items related to a requirement are set, it is possible to reflect the status of the requirement to the UML Items. This external command sample bookmarks the UML Items related to the requirement whose "Review Required" status is True.

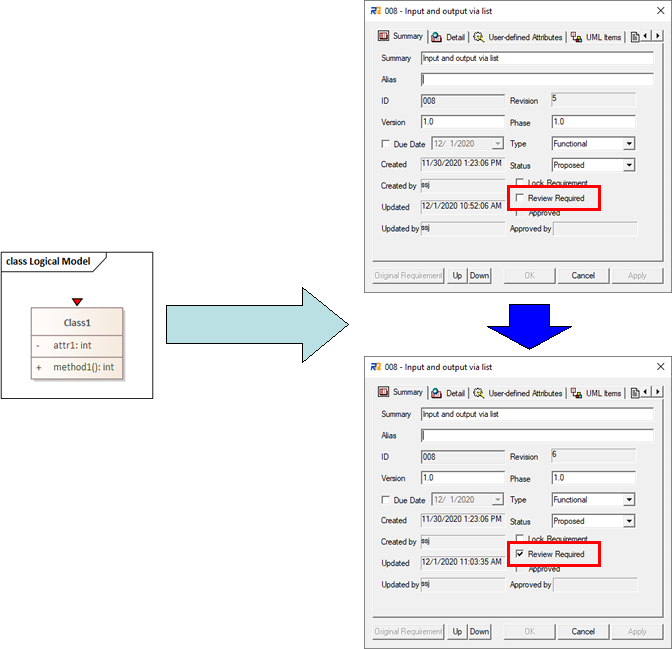

Reflecting the UML Items status to requirement(Use the external command)

When UML Items related to a requirement are set, it is possible to reflect the status of UML Items to the requirement. This external command sample changes the "Review Required" attribute of the requirement related to the bookmarked UML Items to True.


Integration between RaQuest and Enterprise Architect
